50–110CC 4 Stroke ATV Motorcycle Wiring Harness Kit CDI Ignition System Non GY6

This complete wiring harness and CDI ignition system kit is designed as a replacement electrical assembly for 50–110cc 4-stroke off-road motorcycles, ATVs, and dune buggies (non-GY6 engines).

The kit includes essential ignition and electrical components required for standard system repair or replacement. Colour-coded wiring helps simplify installation and reduce connection errors. Built with durable insulation and copper terminals, the harness is designed for reliable operation in typical off-road conditions.

Suitable for maintenance, repair, or restoration of compatible small-capacity engines.

Features

• Complete ignition and wiring harness kit for 50–110cc 4-stroke models

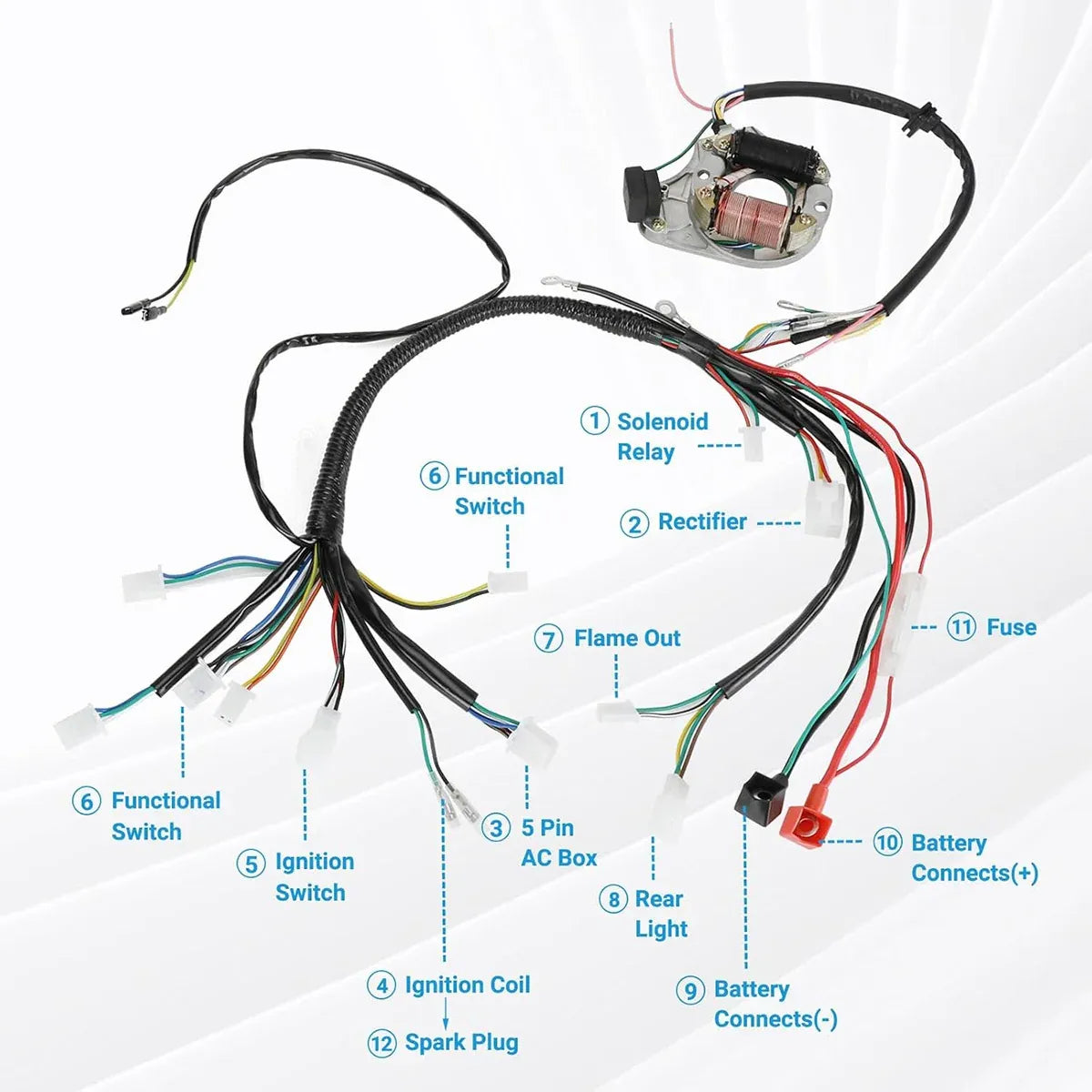

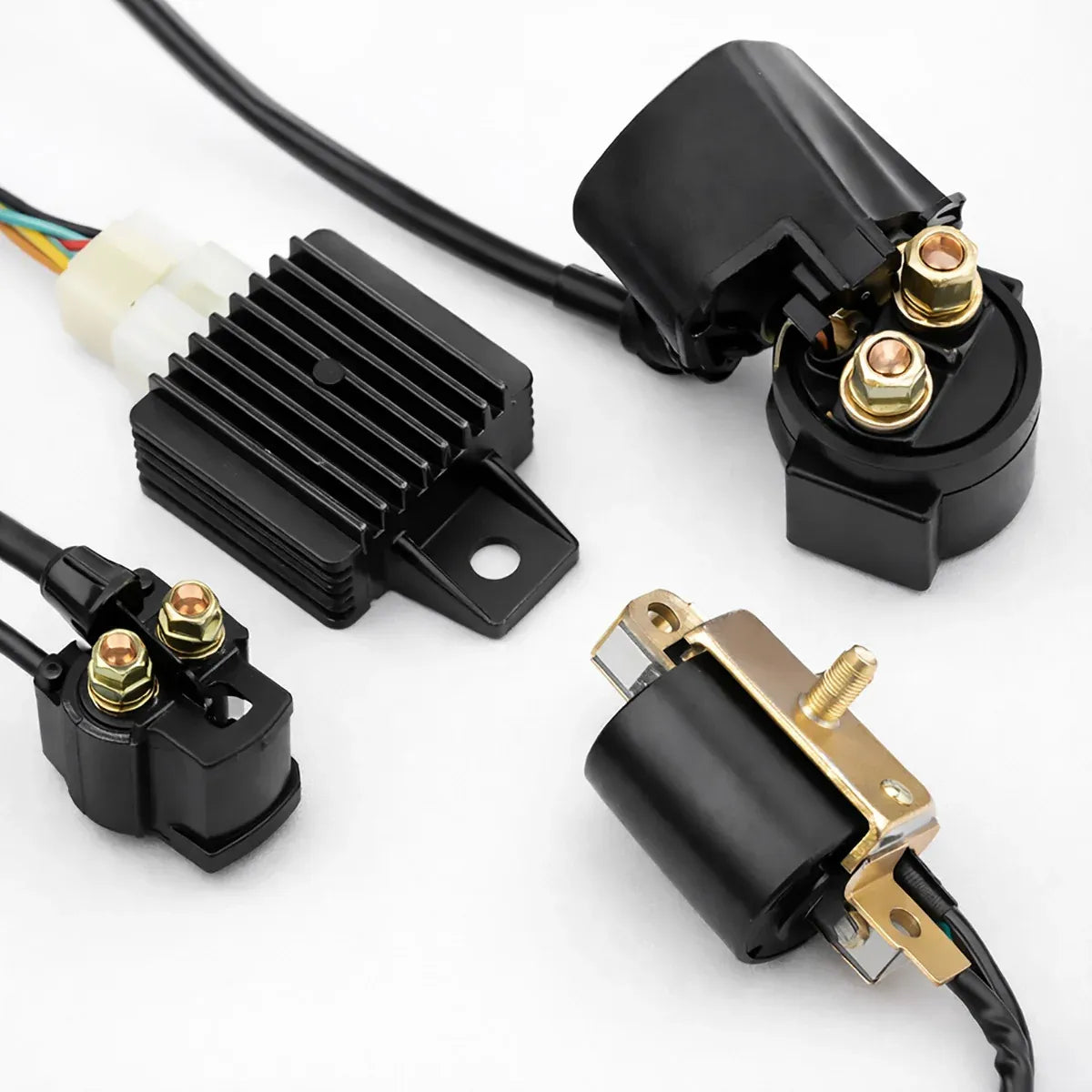

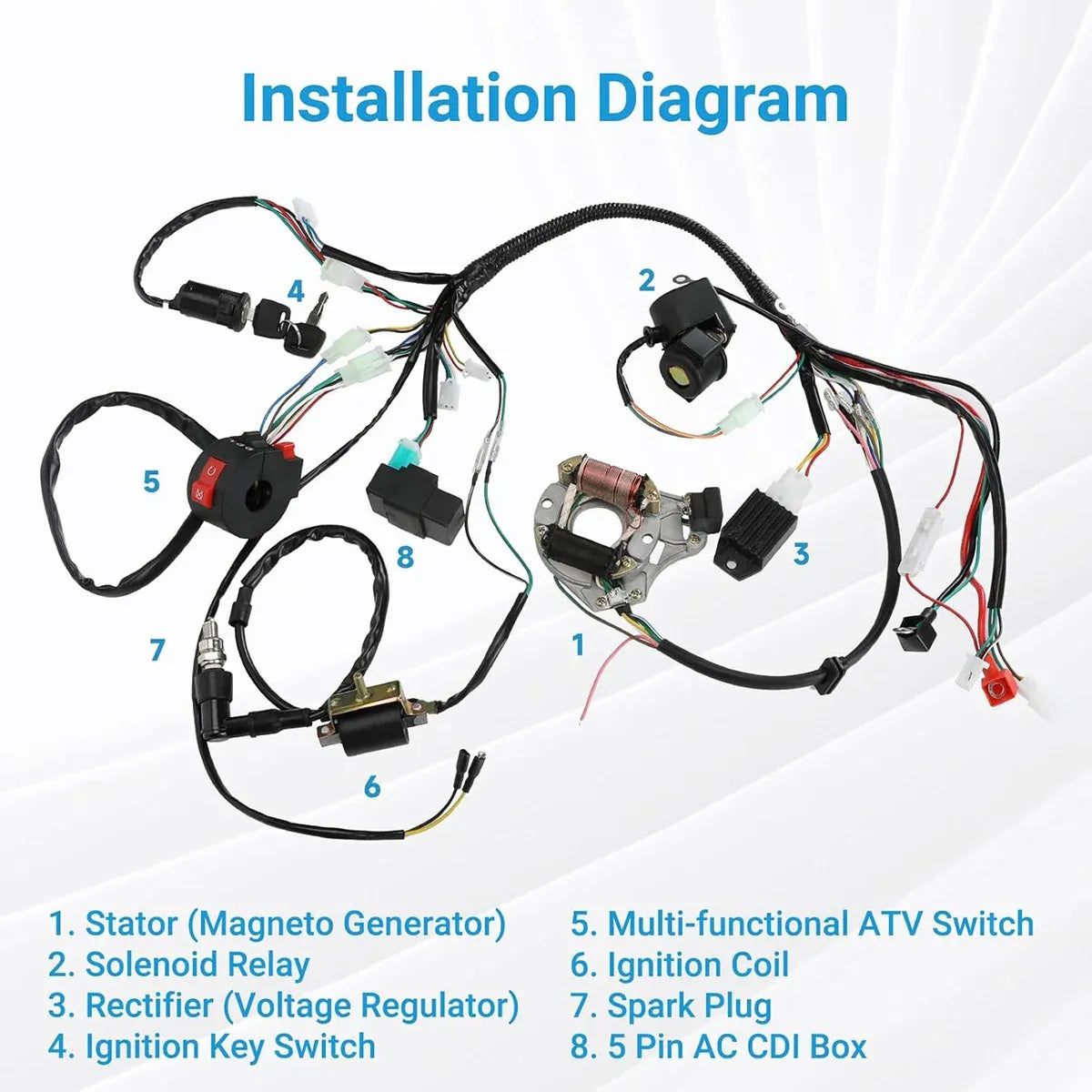

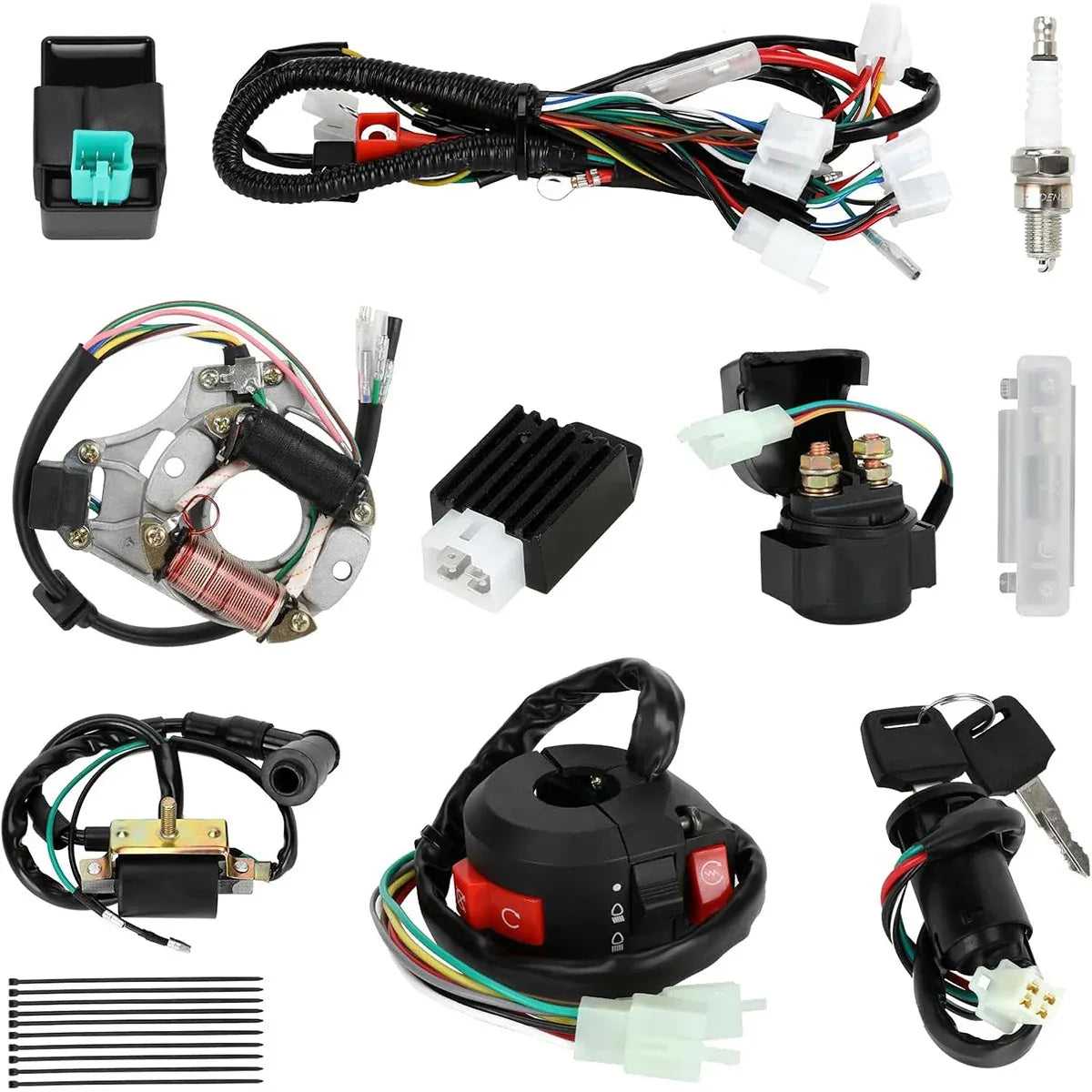

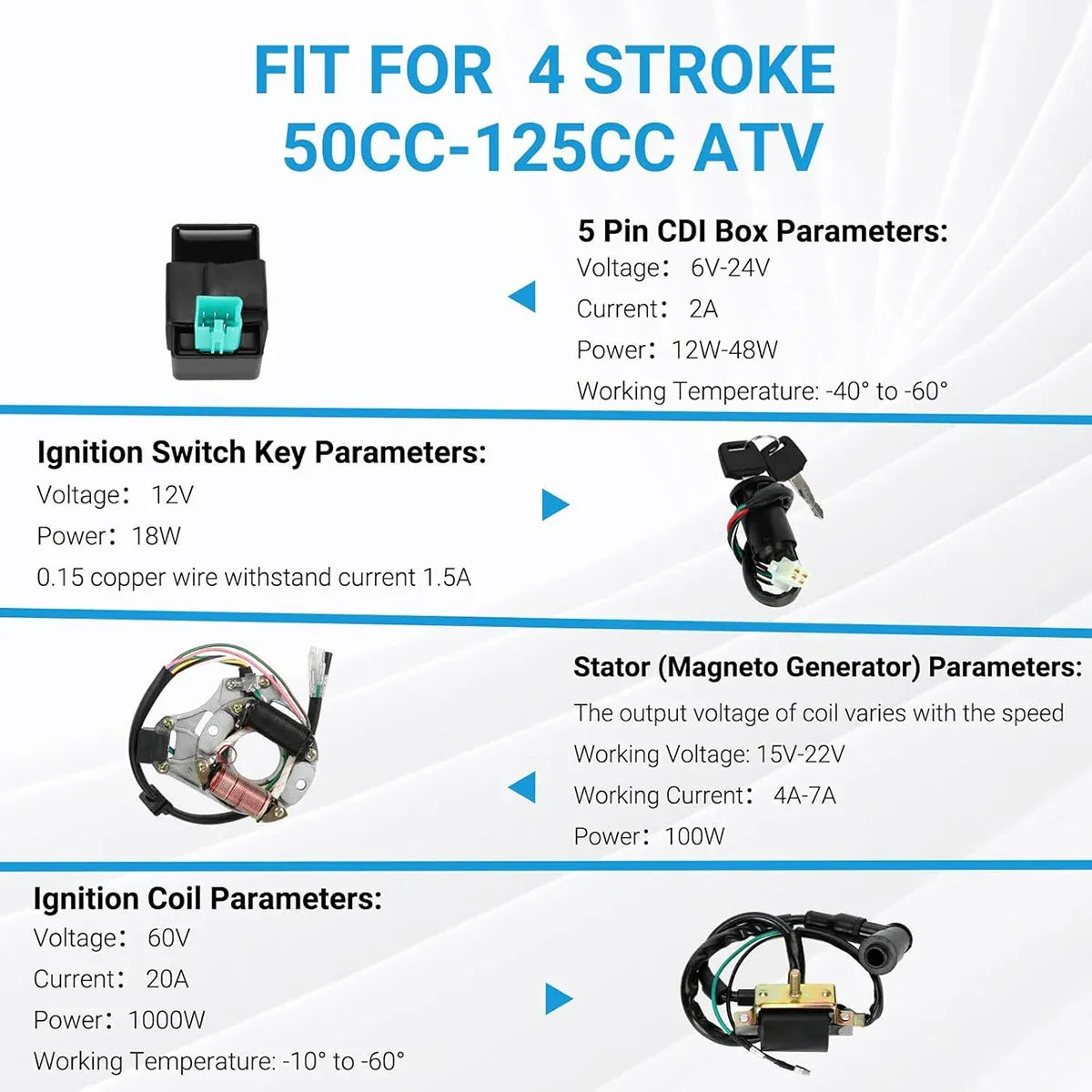

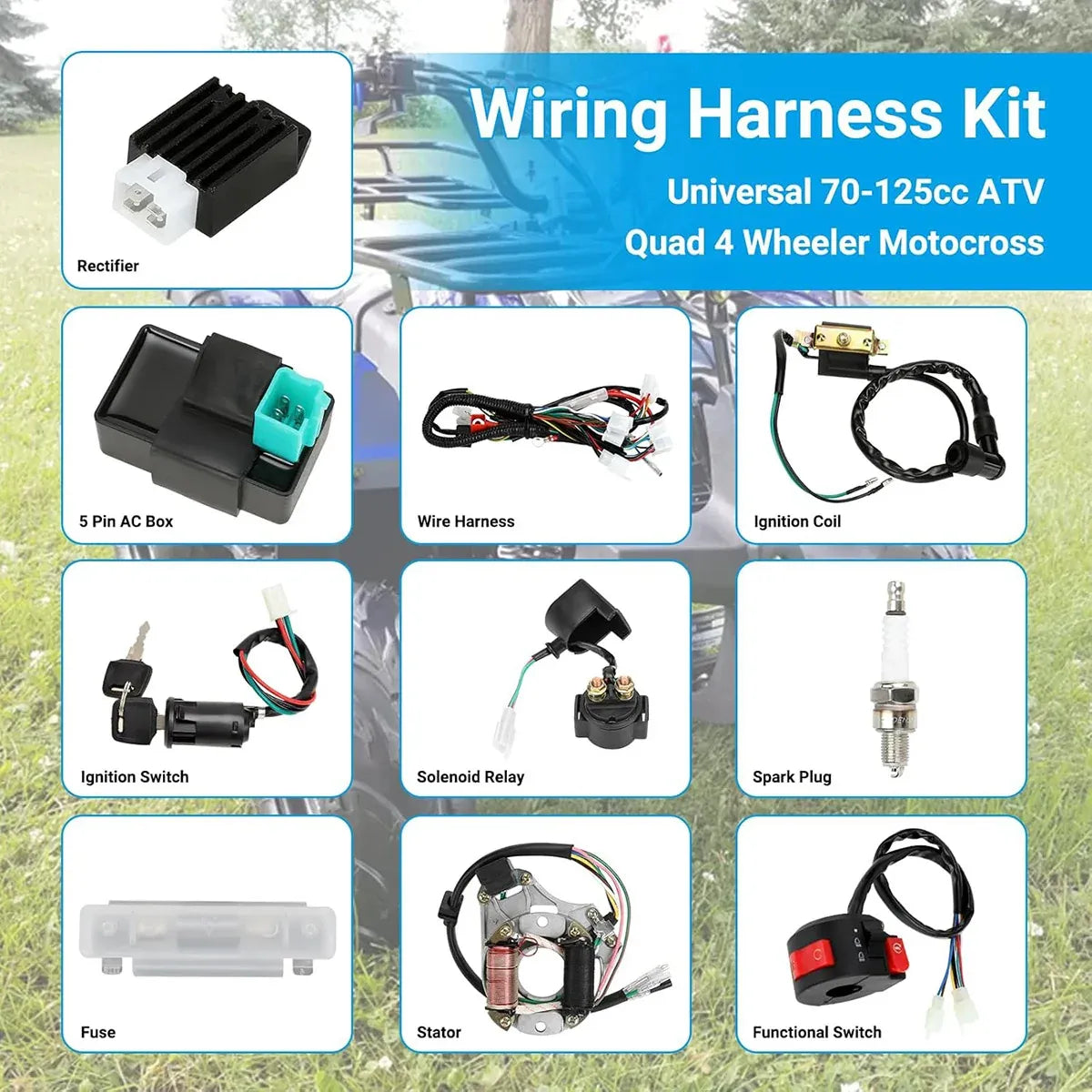

• Includes CDI unit, rectifier, ignition coil, stator, solenoid relay, switch assembly and fuse

• 5-pin AC CDI configuration

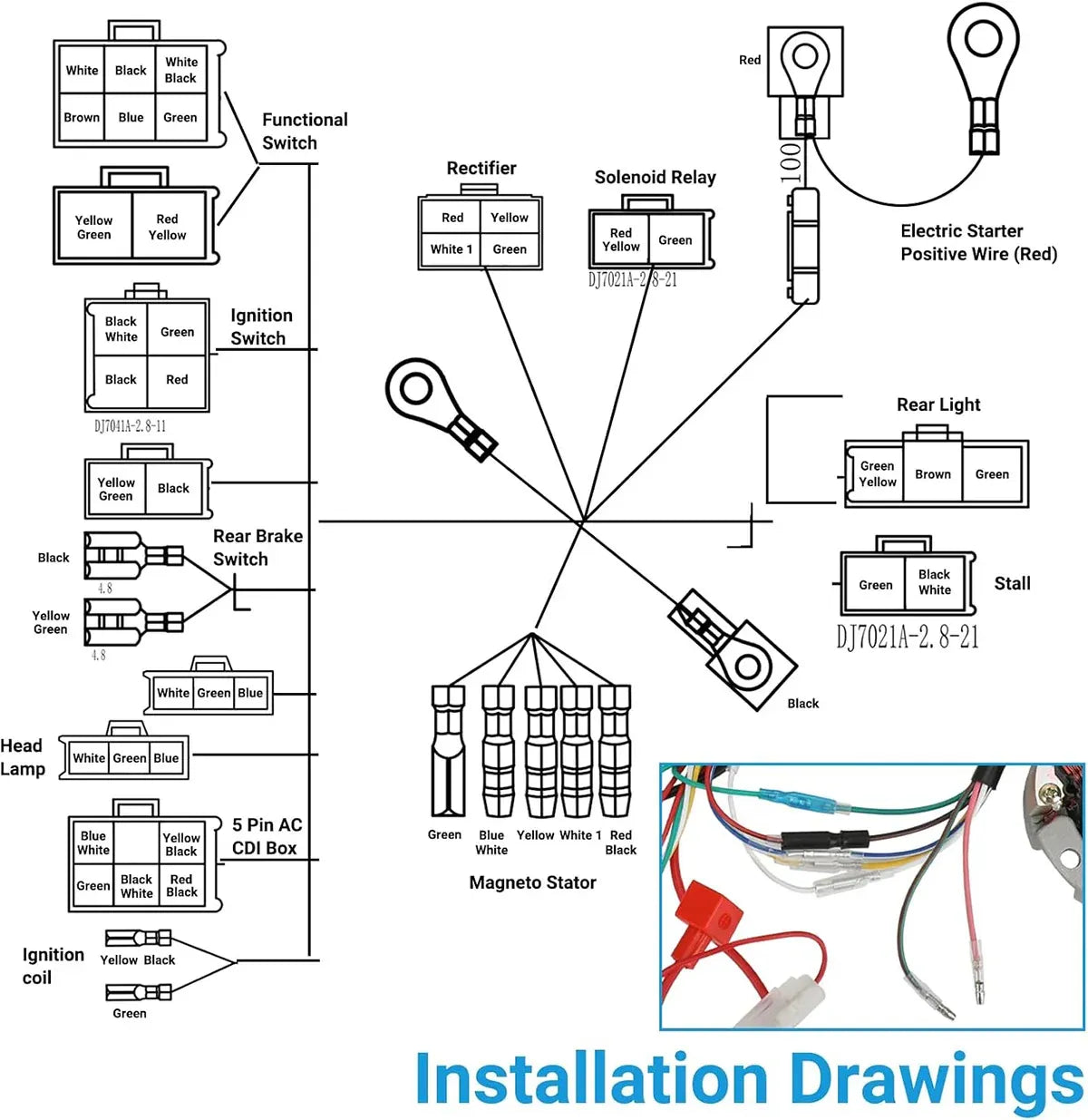

• Colour-coded wiring for simplified installation

• Copper terminals with insulated protective sheathing
• Designed for replacement of existing ignition wiring systems

• Weather-resistant construction for general off-road use

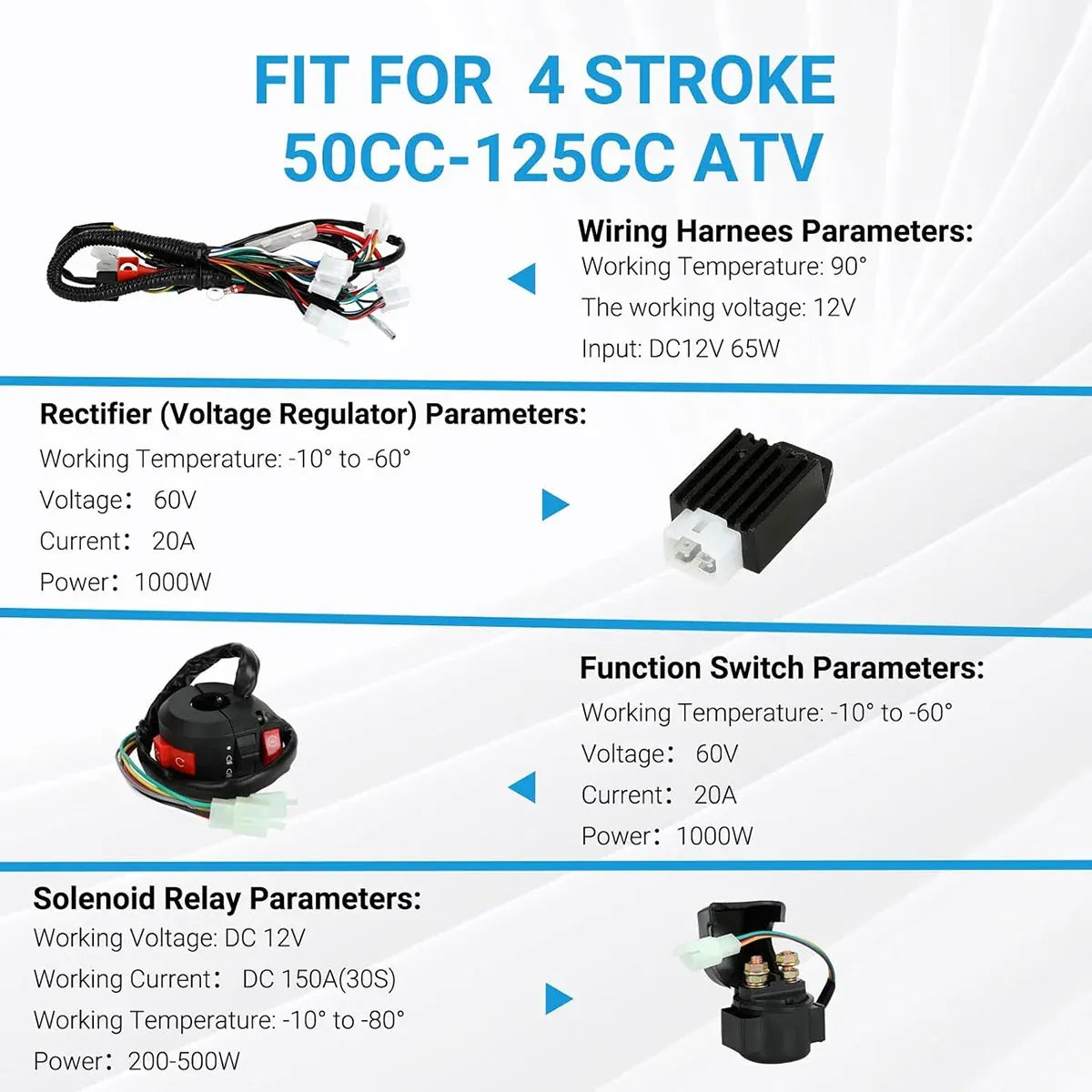

Specifications

• Application: 50–110cc 4-stroke ATV / dirt bike / dune buggy

• Engine Type: Non-GY6 only

• CDI Type: 5-pin AC CDI

• Electrical System: Designed for standard small-engine 12V systems (component dependent)

• Wire Colours:

  • Red (+)

  • Black (–)

  • Green / Yellow / Blue / White (signal lines)

• Operating Temperature Range: Approx. –40°C to 80°C (varies by component)

Package Includes

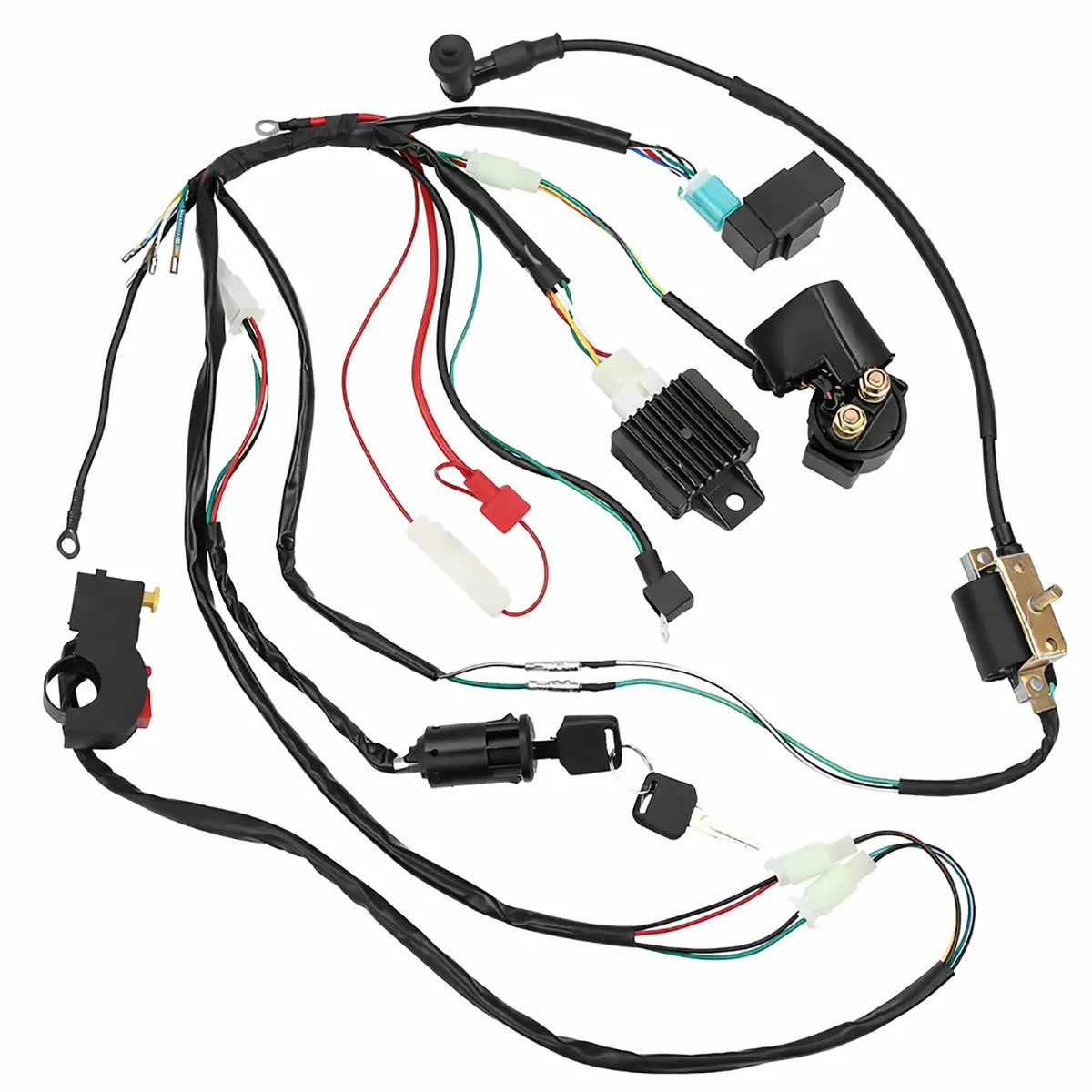

1 × Full vehicle wire ignition harness with all shown components

Note

• Not compatible with GY6 engines.

• Please confirm engine type and connector configuration before purchase.

• Professional installation is recommended.

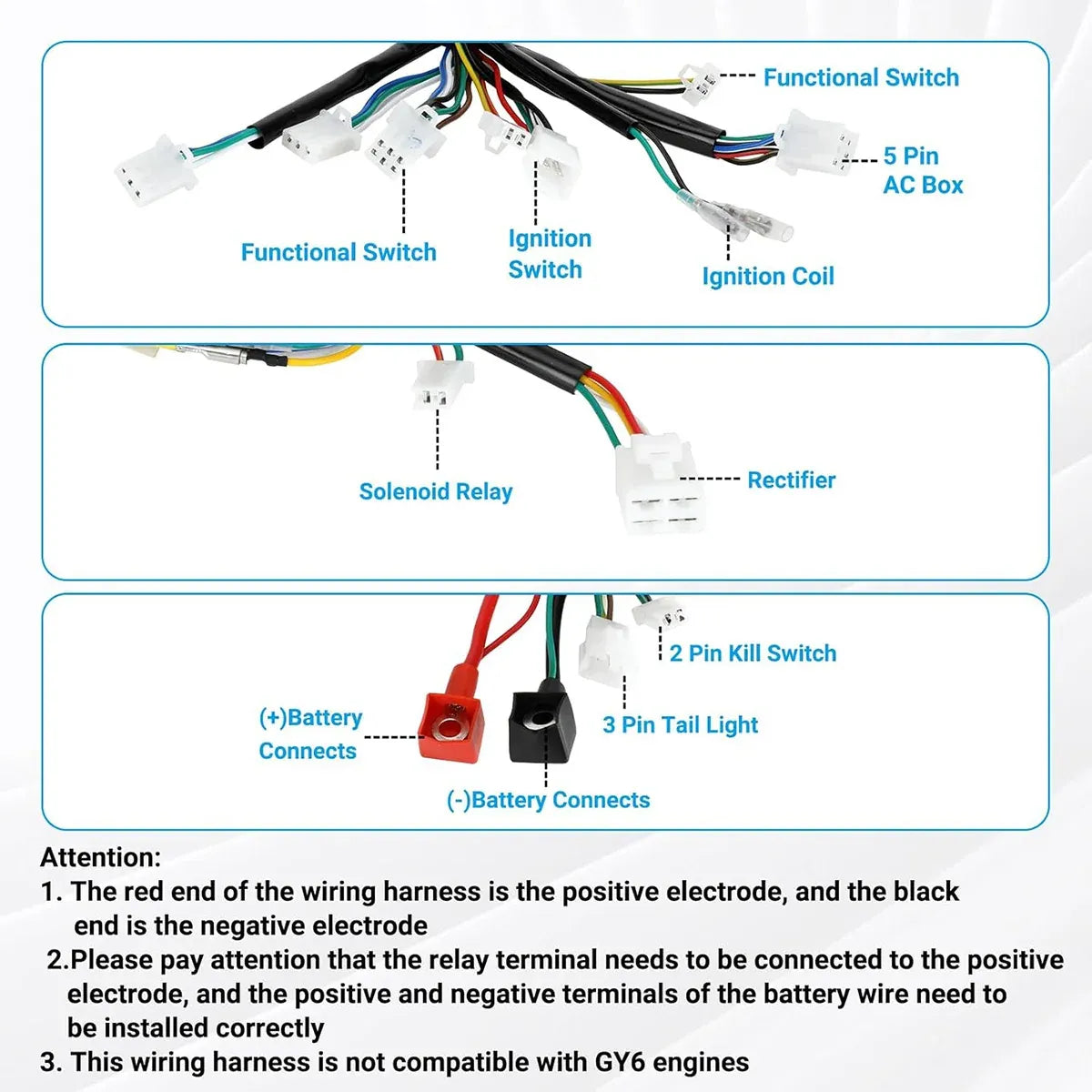

• Ensure correct battery polarity during installation.

• Relay terminal must connect to the positive battery terminal.

• Colour may vary slightly due to lighting and display settings.
