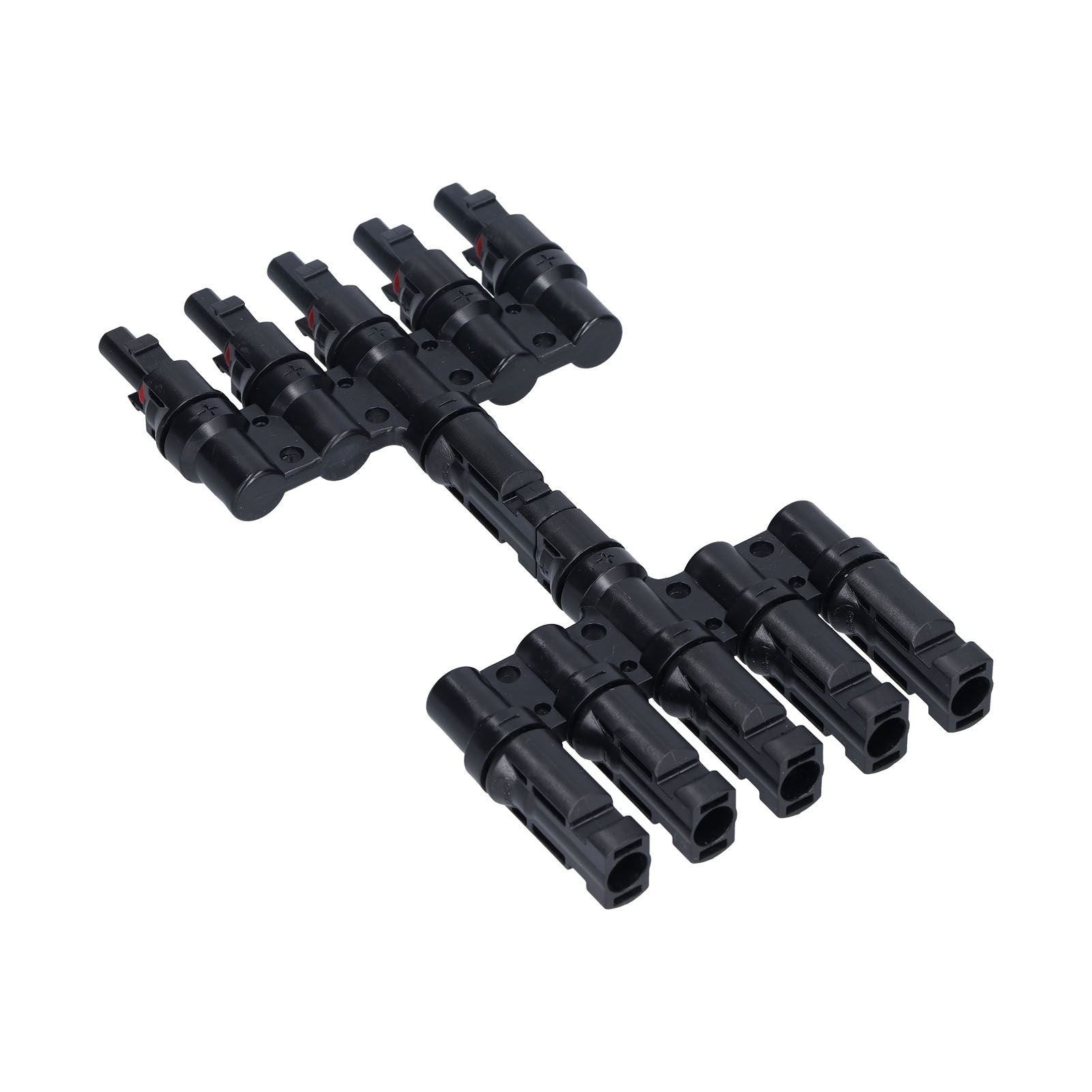

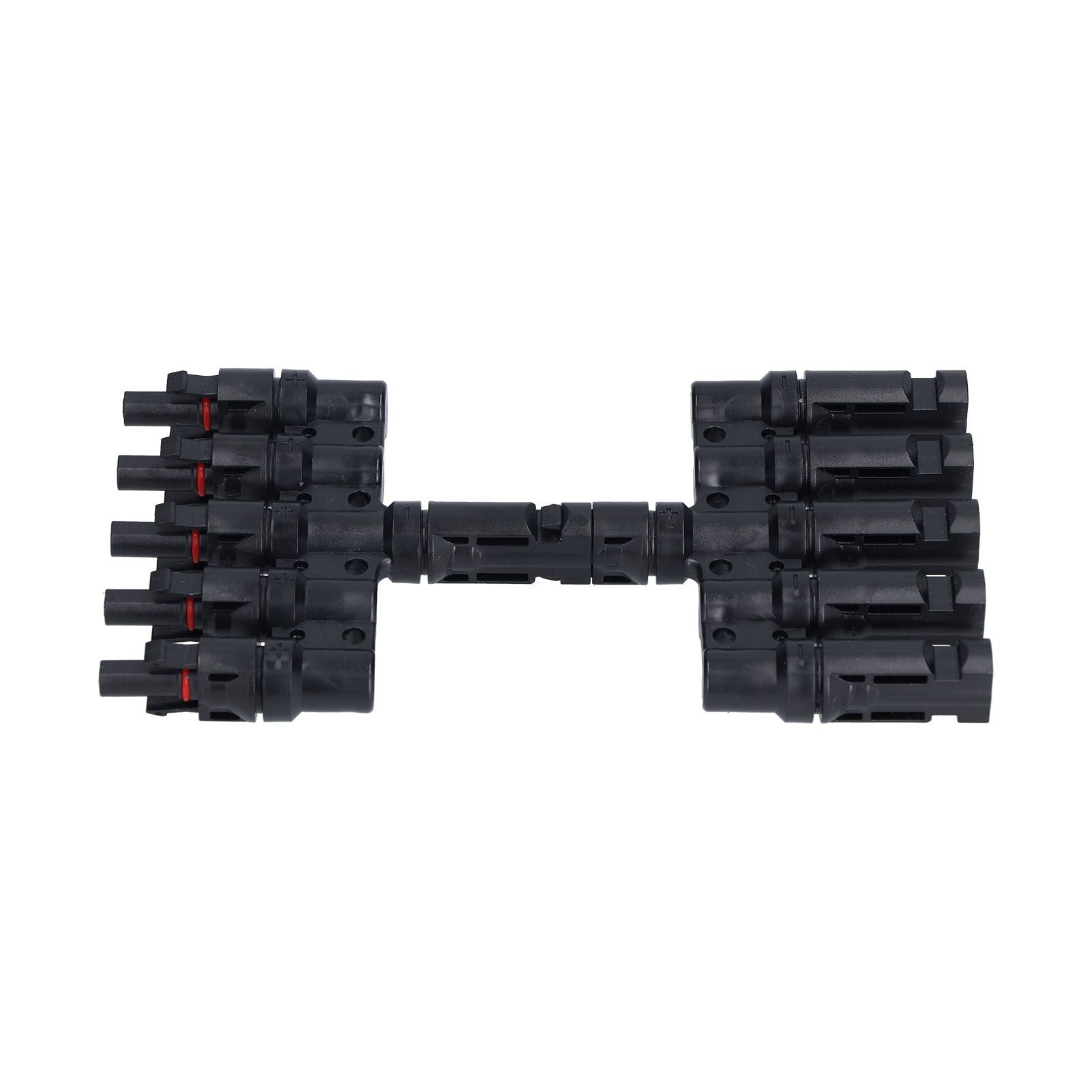

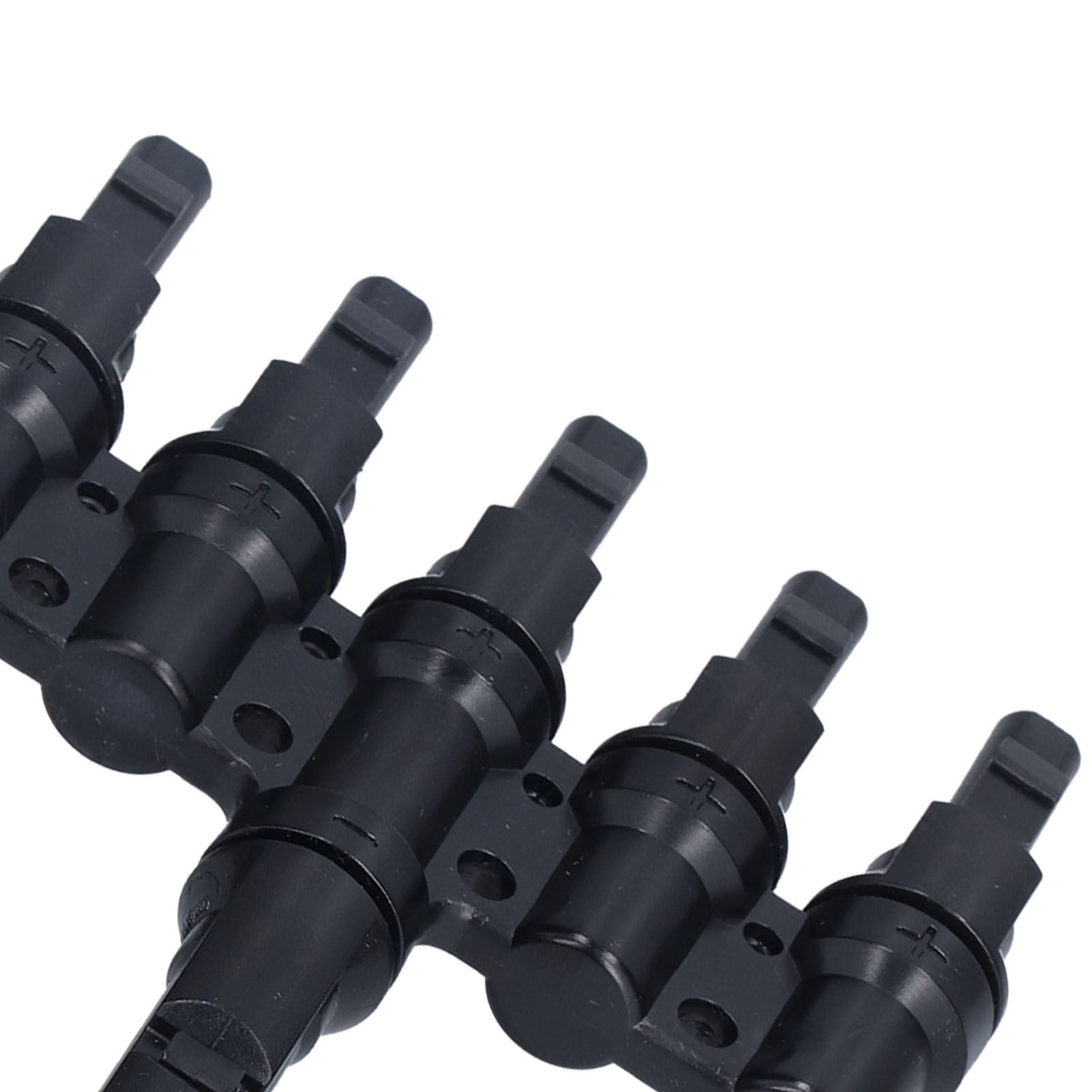

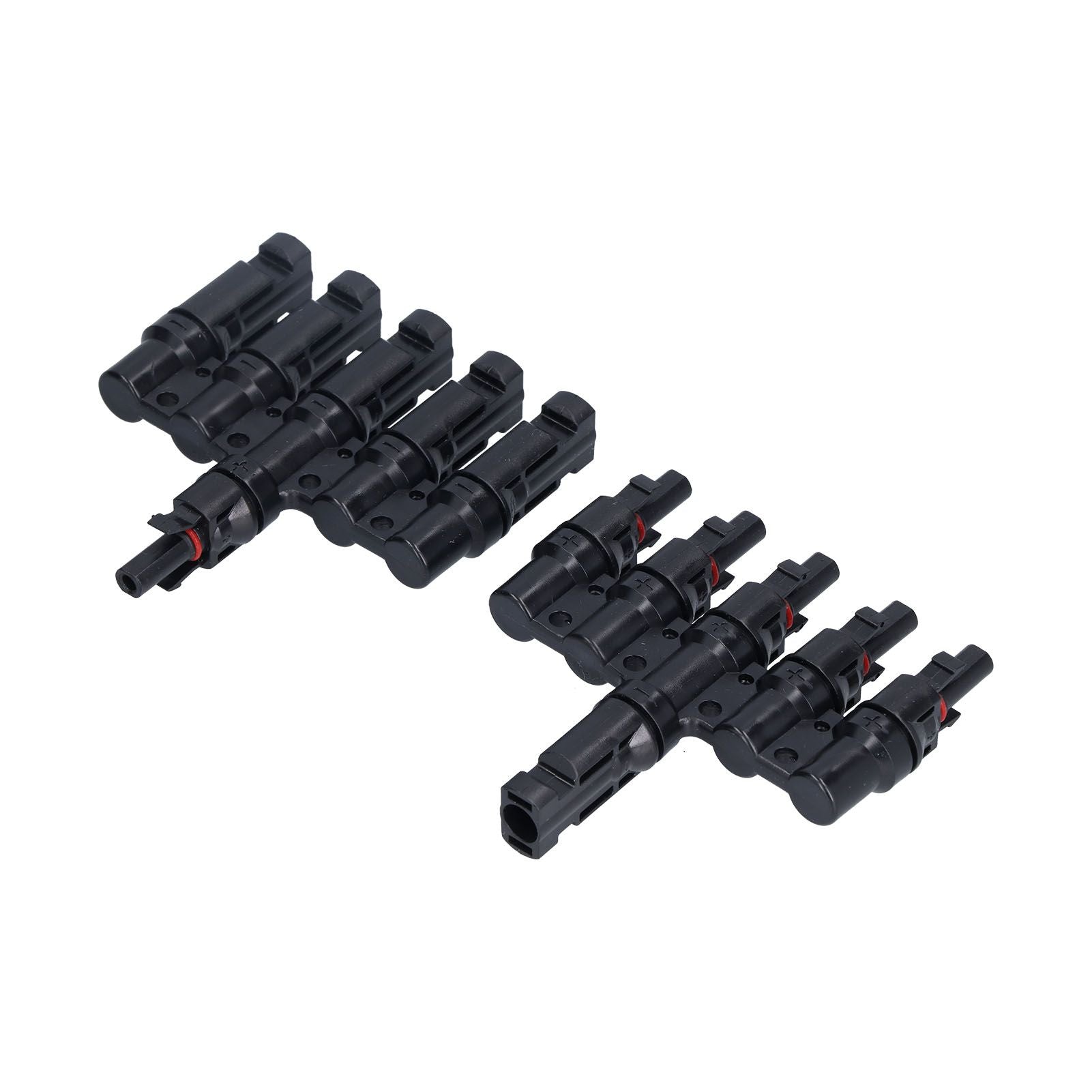

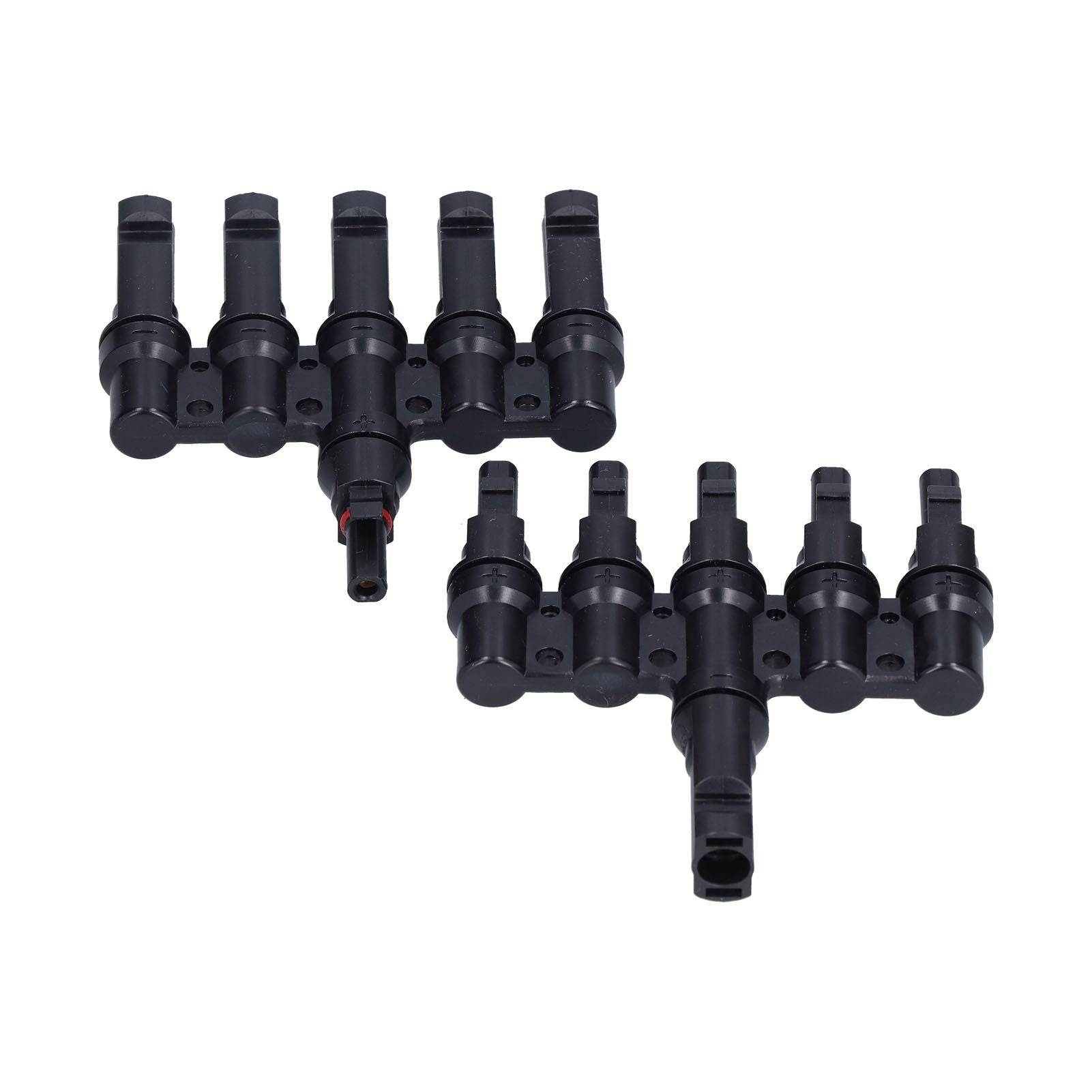

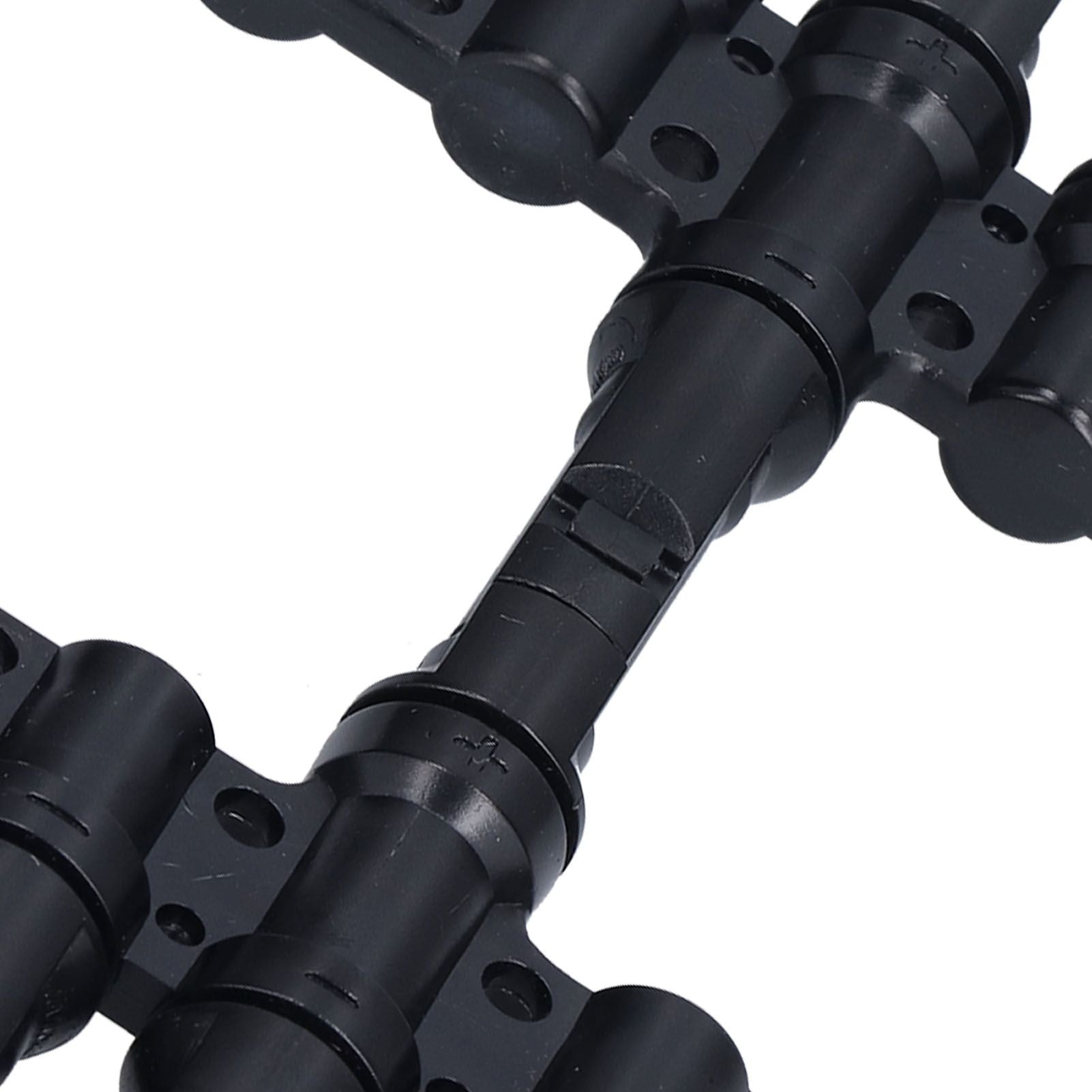

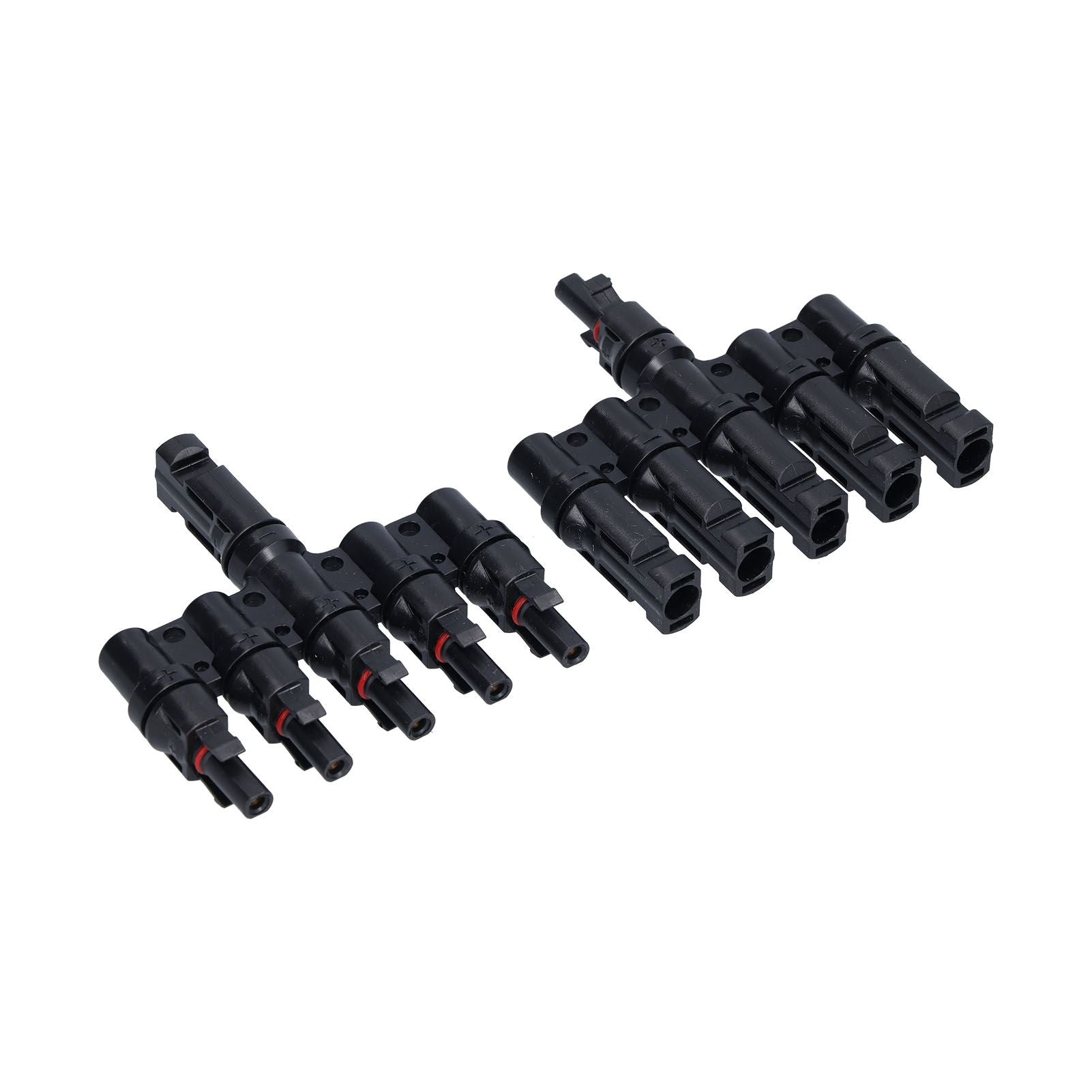

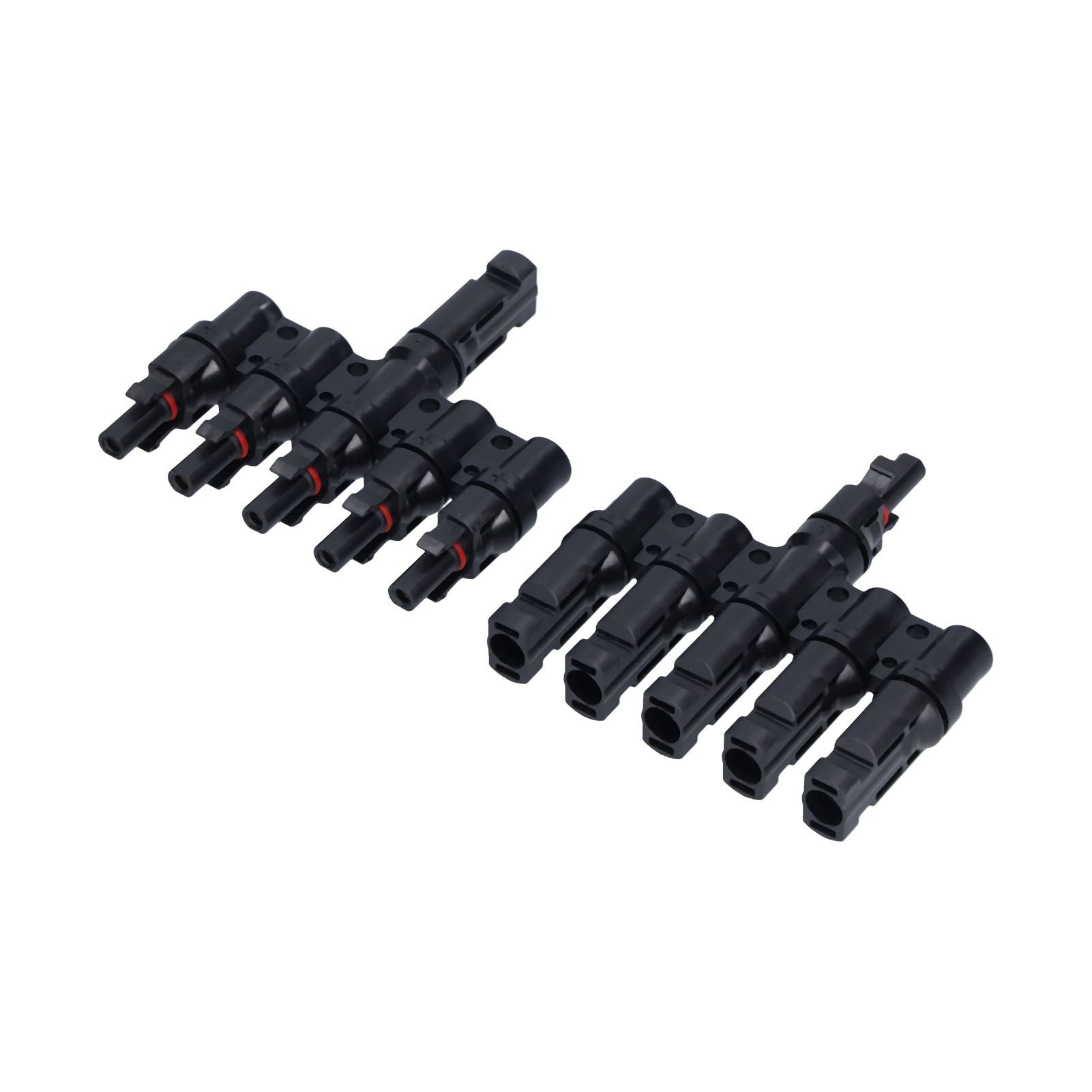

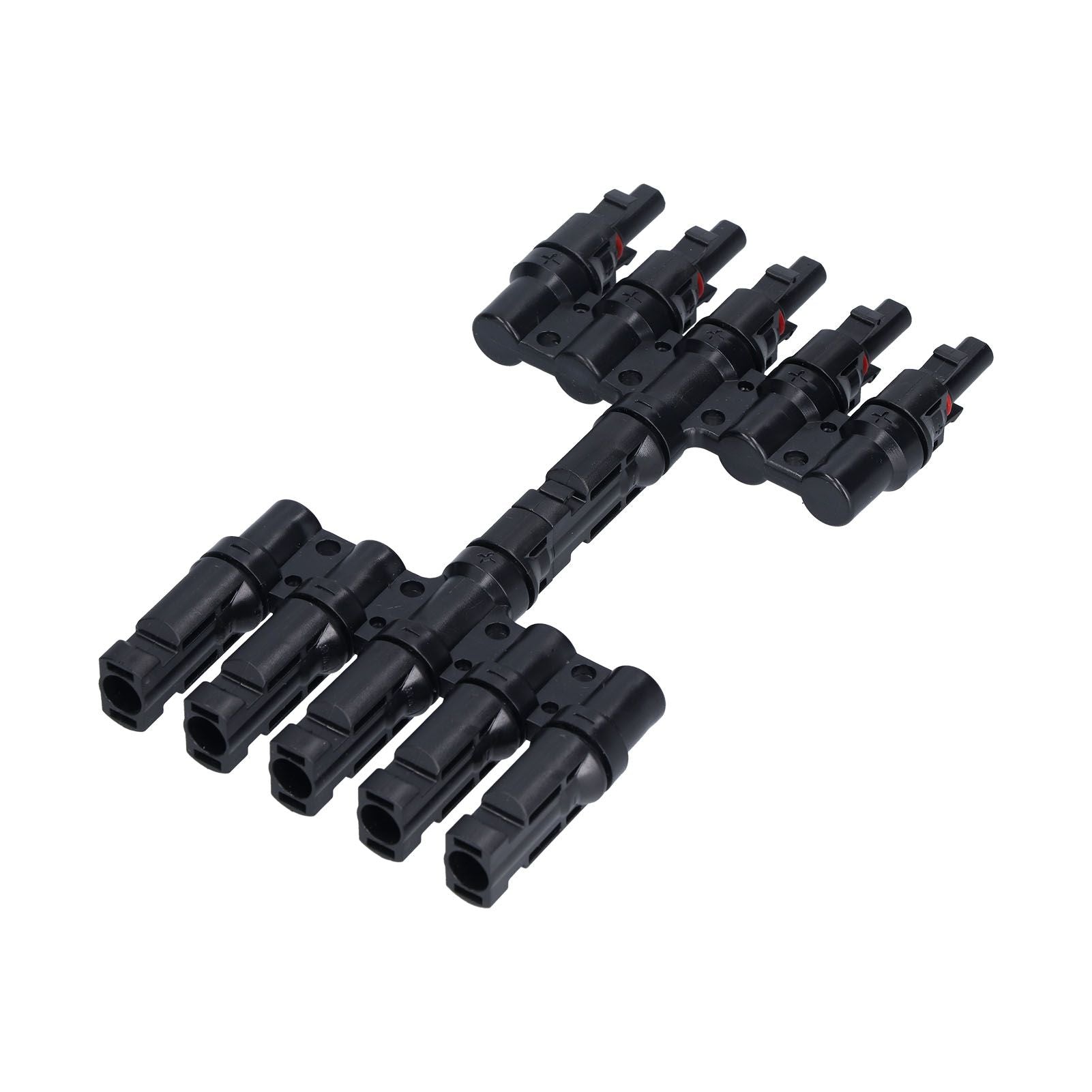

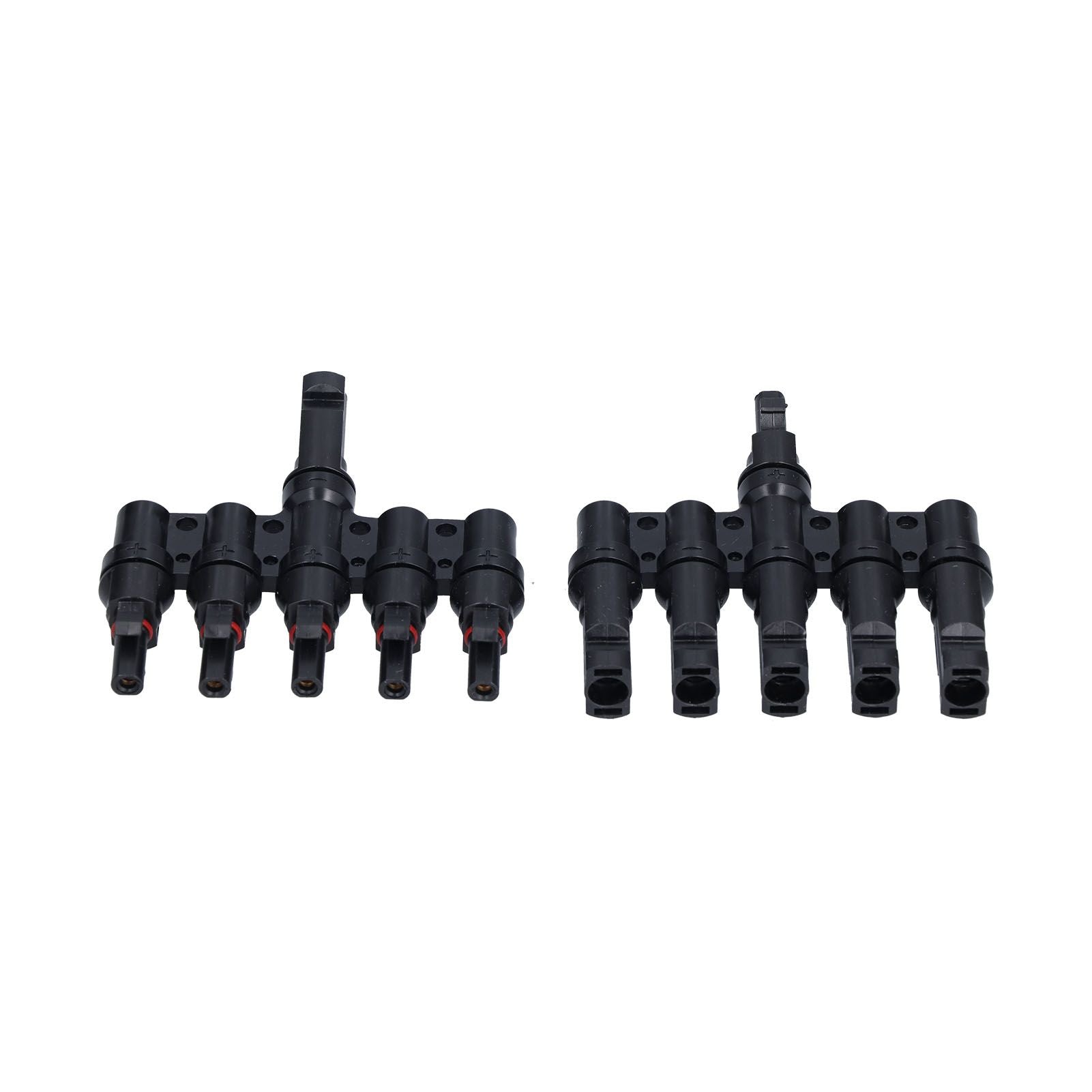

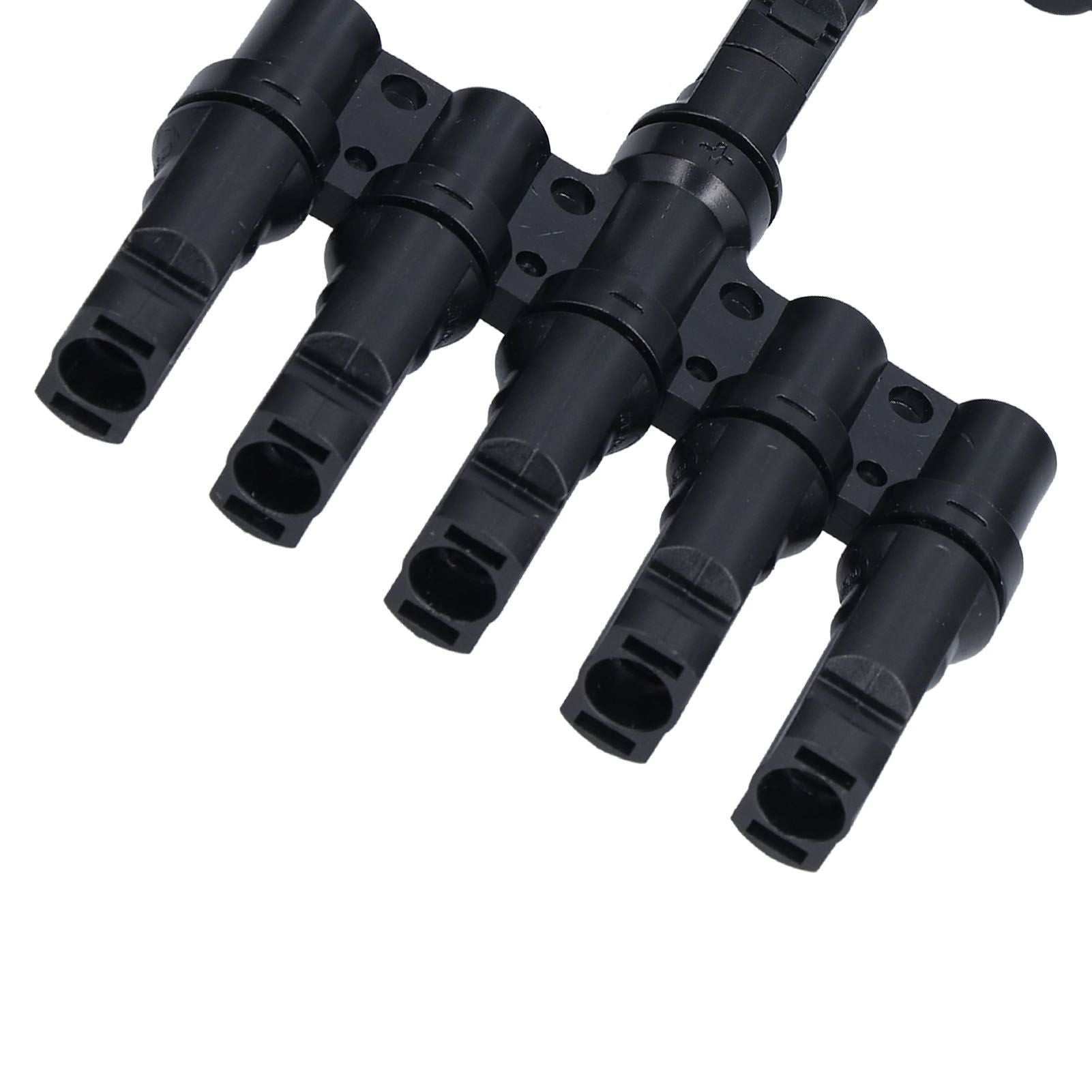

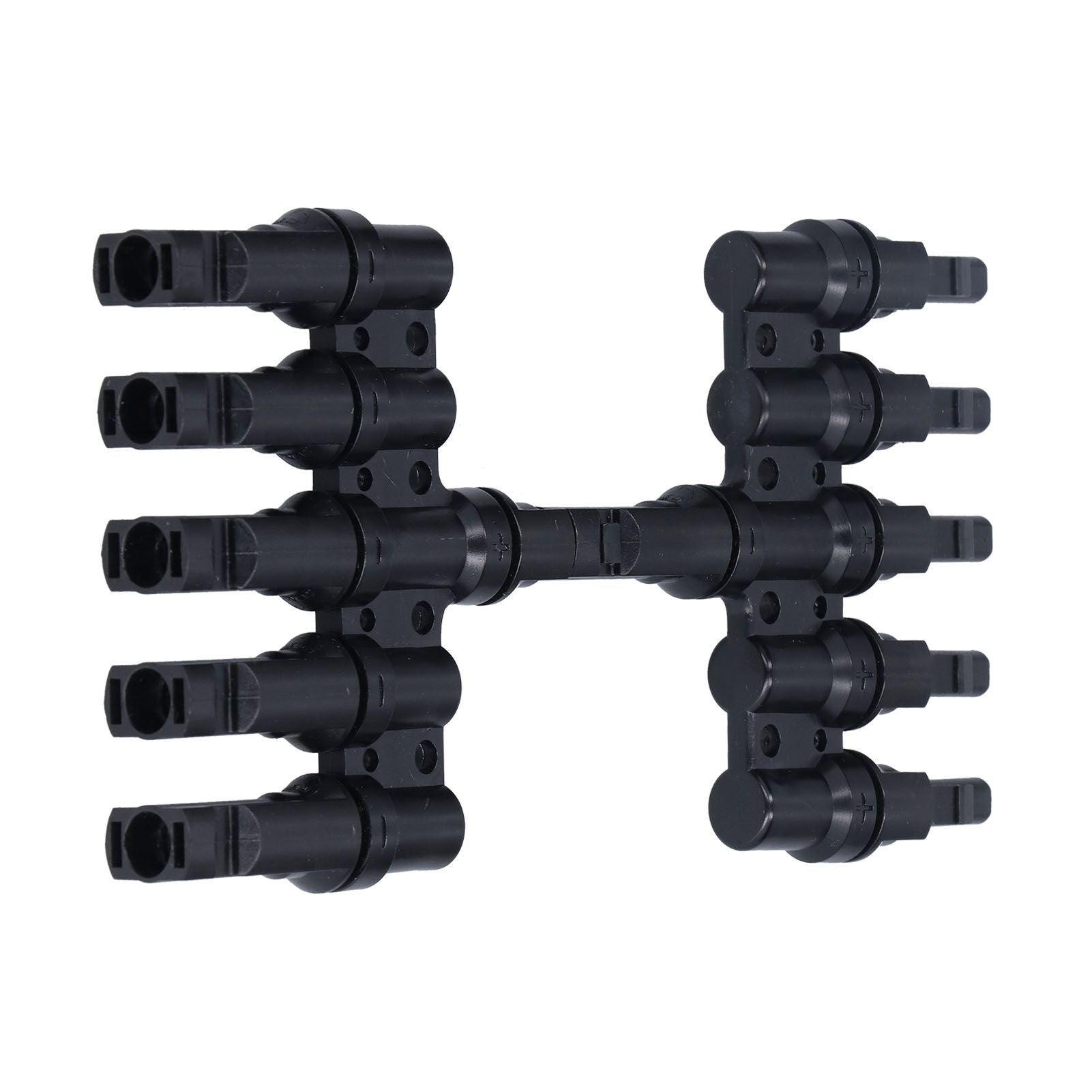

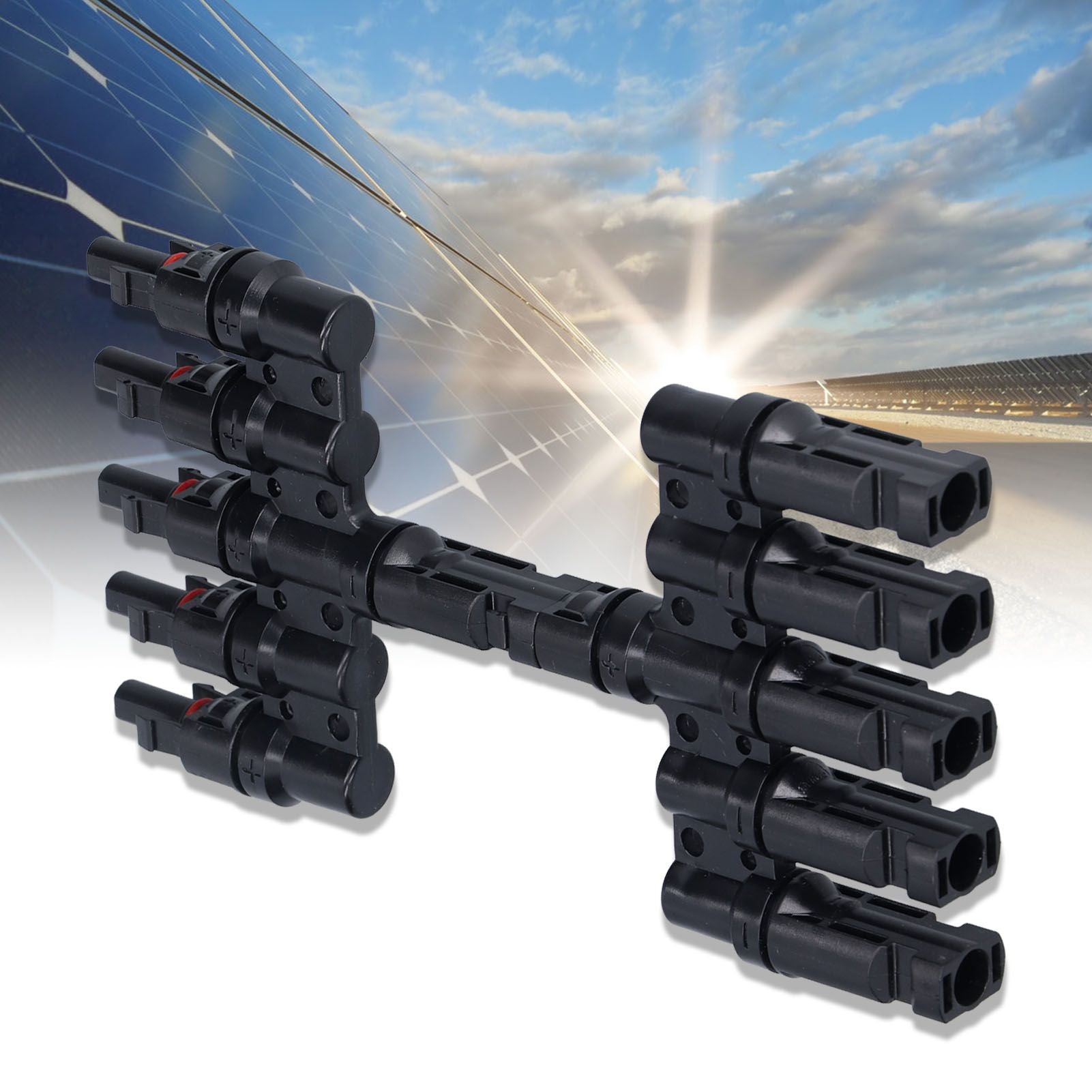

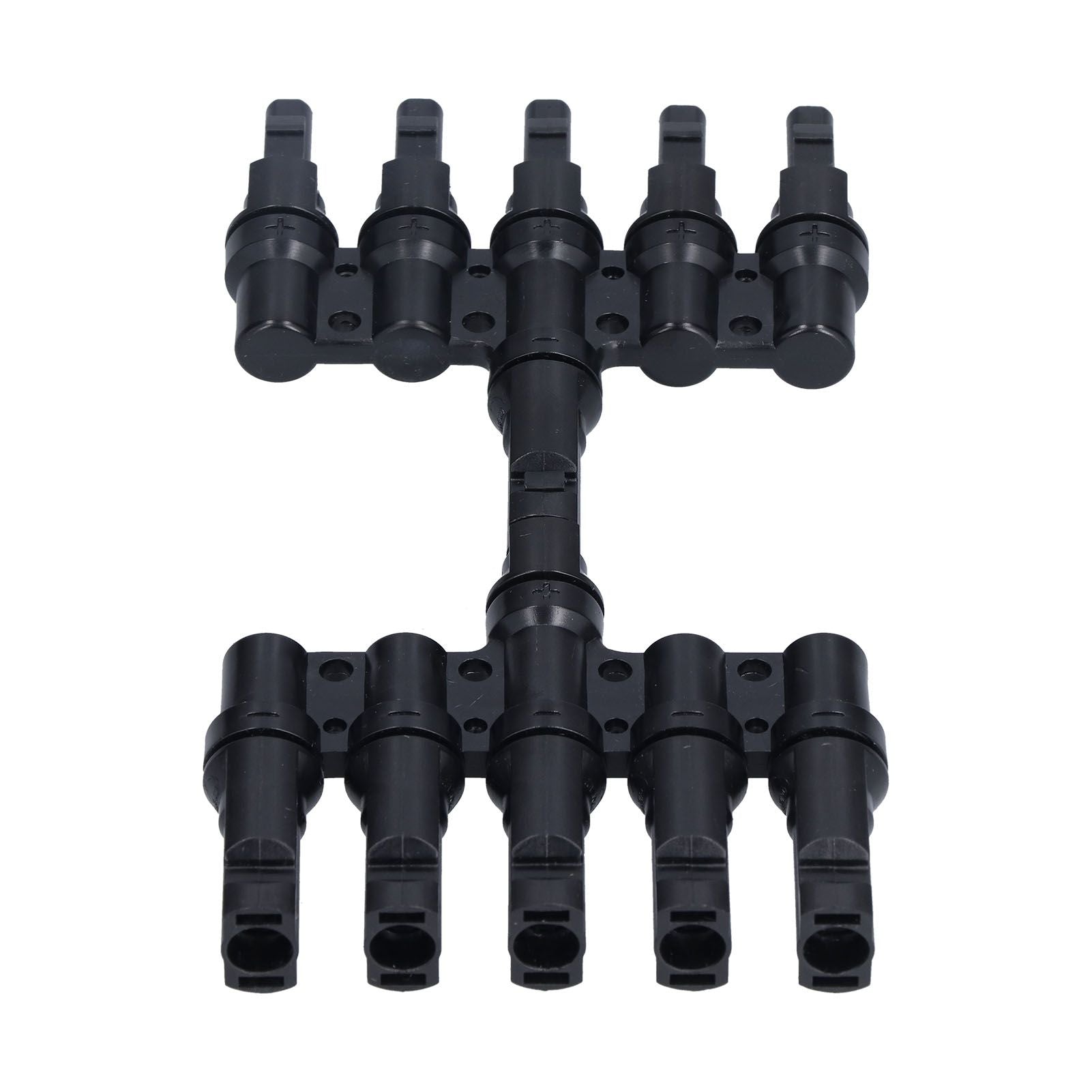

1 to 5 Branch Connector 5 Way Solar Panel Cable Branch Connector IP67 Waterproof Male Female Connector

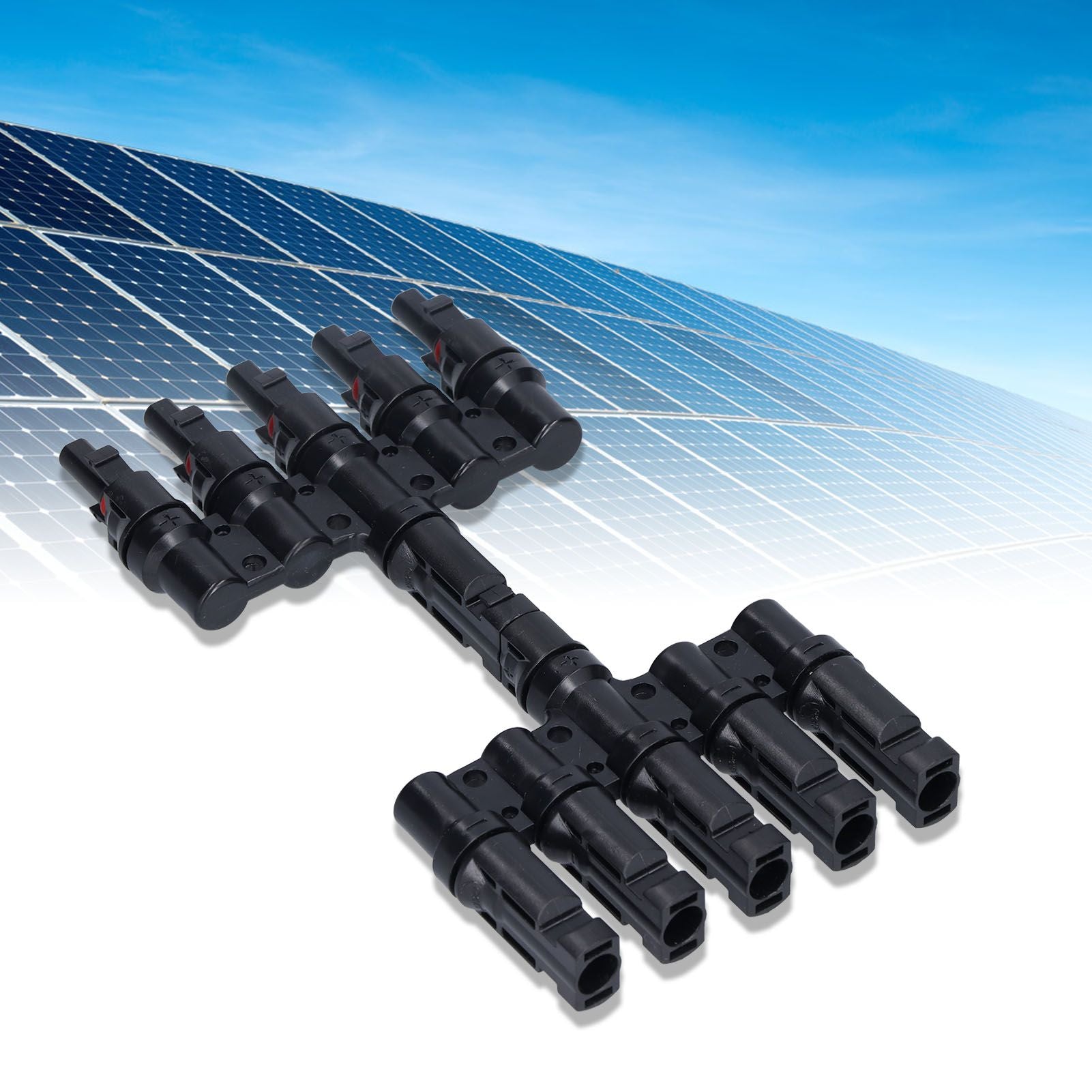

1、[Connect Multiple Solar Panel] The solar connector is compatible and can be used to connect multiple solar panels in parallel.

2、[Easy To Use] The cable branch connector is easy to use, pressing both sides of the lock block with your fingers, and plugs can be easily inserted and pulled out without using other tools.

3、[Waterproof] This branch connector is IP67 waterproof, can be used in extreme weathers and conditions, so you can use it with confidence.

4、[Durable Material] This branch connector is made of plastic and copper material, which is durable and can be used for a long time.

5、[Stable And Safe] This branch connector is integrally locked, stable and safe, and durable in outdoor environments.

Item Type: Branch Connector

Material: Plastic, copper

Working Current: 20A (4mm²), 30A (6mm²)

Withstand Voltage: DC1000V

Contact Resistance: =0.5mΩ

Insulation Resistance: ＞ 500MΩ

Applicable Single Core Cable Section: 1.5mm²~6mm²

Cable Outer Diameter Range: Φ5mm~Φ 7mm

Ambient Temperature: -40 ℃~+ 105 ℃

Protection Level: IP67

Security Level: Ⅱ

Insertion Force: ≤50N

Pull Out Force: ≥50N

Insulation Material: PPO, black

Flame Retardant Rating: UL94-VO

Terminal Connection Method: Crimping

Application: Solar connection

Weight: Approx. 220g / 7.8oz

1 x Male Connector

1 x Female Connector
